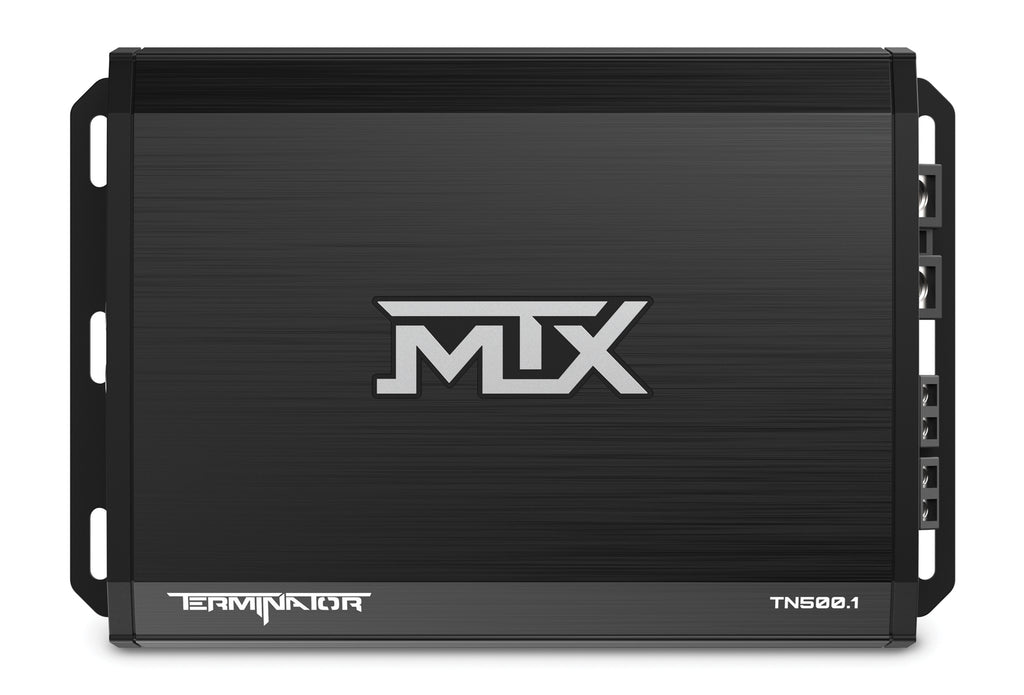

The TERMINATOR TN500.1 Mono Channel amplifier features true RMS power in a newly made chassis redesigned to fit the tightest locations.
This amp features:
- Reliable and Efficient Full Range Class-D Circuit Design
- Small Size Footprint for Easy Installation
- Surface Mount Component Technology
- Fully Adjustable Gain and Crossover controls
- Direct Insert Power and Speaker Terminals
- Power and Protection LED Light Status Indicator
- Short, Thermal, and Under / Over Voltage Protection
COMPACT DESIGN WITH CLARITY IN MIND
The new generation TERMINATOR TN500.1 amplifier is a high-quality 500-watt RMS (Tested @ 712W RMS) amplifier that can be installed in almost any vehicle due to its ultra-compact chassis size and multi-sectioned mounting bars Thanks to its intelligent design and impressive power capability you and your neighbors are sure to Feel The Thunder!
RELIABLE AND EFFICIENT POWER THAT DOESN’T DISAPPOINT
Designed with efficient, Class-D technology keeping the power high and the heat low, this amp will push your subwoofers to the limit giving you the bass you feel as well as hear. You can tailor your subwoofers to your desired preferences without compromising on power or functionality. Our surface mount technology ensures a compact design that is highly reliable and resistant to vibrations.
DESIGNED TO PUT YOU IN CONTROL
The TN500.1 has integrated, variable gain and crossover controls along with a separate bass boost and subsonic filter to fine-tune your system. With next-generation circuitry, you’re protected against under or over-voltage, thermal, and short circuits. The LED status indicator light informs you of anything out of the ordinary. The included Remote Bass Knob puts the control right at your fingertips.
SPECIFICATIONS
- Description: MONO BLOCK
- Topology: CLASS D
- 4Ω RMS Power Output: 300W X 1 CHANNEL (Tested @ 439W RMS)
- 2Ω RMS Power Output: 500W X 1 CHANNEL (Tested @ 712W RMS)
- THD: < 0.3%
- Signal to Noise Ratio: > 95DB
- Frequency Response: 20HZ - 250HZ
- Crossover: 50HZ - 250HZ
- Subsonic Filter: 10HZ - 55HZ
- Bass Boost: 0 - 12dB @ 45HZ
- Maximum Input Signal: 6V
- Warranty Period: 12 MONTHS FROM INITIAL DATE OF PURCHASE
DIMENSIONS
- A - Length: 7 ⅛" (180mm)
- B - Width: 5 ⁷⁄₁₆" (137mm)
- C - Depth: 2" (50mm)
RATINGS
- CTA-2006-D Compliant
- Recommended Fuse Rating: 50A
- Minimum power wire rating: 4 AWG (5.2MM)
DOWNLOADS
The user manual can be downloaded by clicking here
