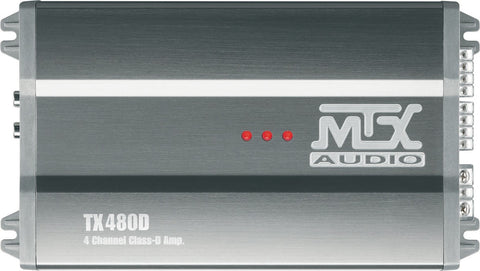

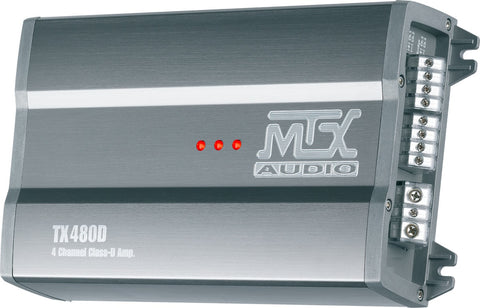

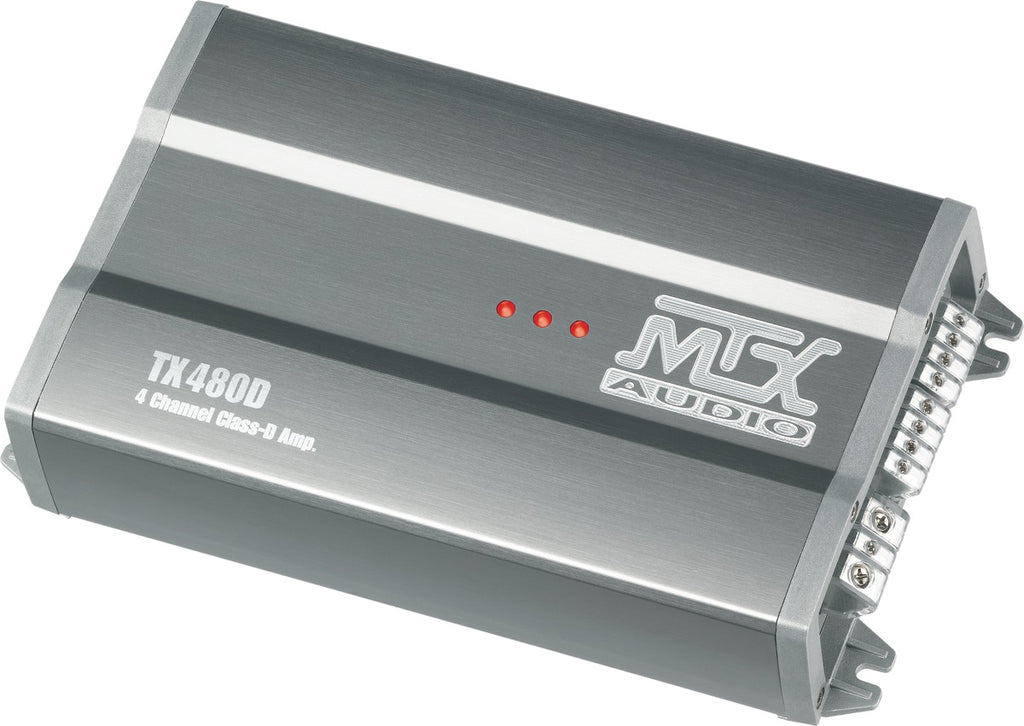

The MTX Audio TX Series is a premium range of amplifiers designed in the USA and made with high quality MOSFET technology, with high output and fantastic sound quality at a great price you can't beat the TX range for the best of car audio technology. The TX480D is well under-rated, these amplifiers produce over 110W RMS @4Ω <1%THD per channel.
Also available, matching TX monoblock amplifiers; strappable 500W RMS TX6500D and 1000W RMS TX81000D.
Features :
- Highly efficient HD Class-D wide range amp for speakers and subwoofers
- Very compact size for an easy installation
- 2Ω stereo and 4Ω bridged compatible
- Top quality components; Elna (DE) caps, IRF (USA) Mosfets
- 12dB/Oct flexible x-over
- Impressive sound quality and dynamic
- Full aluminium construction
- Thermo regulated fan connector (for one or two external fans)

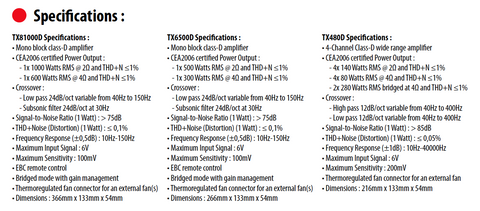

Specifications :
- Class-D 4-channel amplifier
- CTA2006 certified power
- 4x 80 watts RMS @ 4Ω THD+N ≤1% (110W RMS+ in our testing with SMD and AP)
- 4x 120 watts RMS @ 2Ω THD+N ≤1%
- 2x 240 watts RMS bridged @ 4Ω THD+N ≤1% - Active x-over
- High-pass (HPF) 12dB/Oct variable from 40Hz to 400Hz
- Low-pass (LPF) 12dB/Oct variable from 40Hz to 400Hz - Signal/Noise ratio (1 watt) : >80dB
- THD+Noise (Distortion) (1 watt) : ≤1%
- Frequency response (±1dB) : 20Hz-30000Hz
- Input sensitivity RCA : 200mV to 6V
- Dimensions : 125mm x 215mm x 50mm

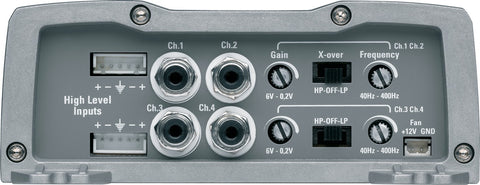

- High and low level inputs
Download product user manual here
